Cost-Efficient and Advanced HART and FF Communicators
Image: DevCom2000, HART Communicator Software, Windows
TAB-PC-R-PWR

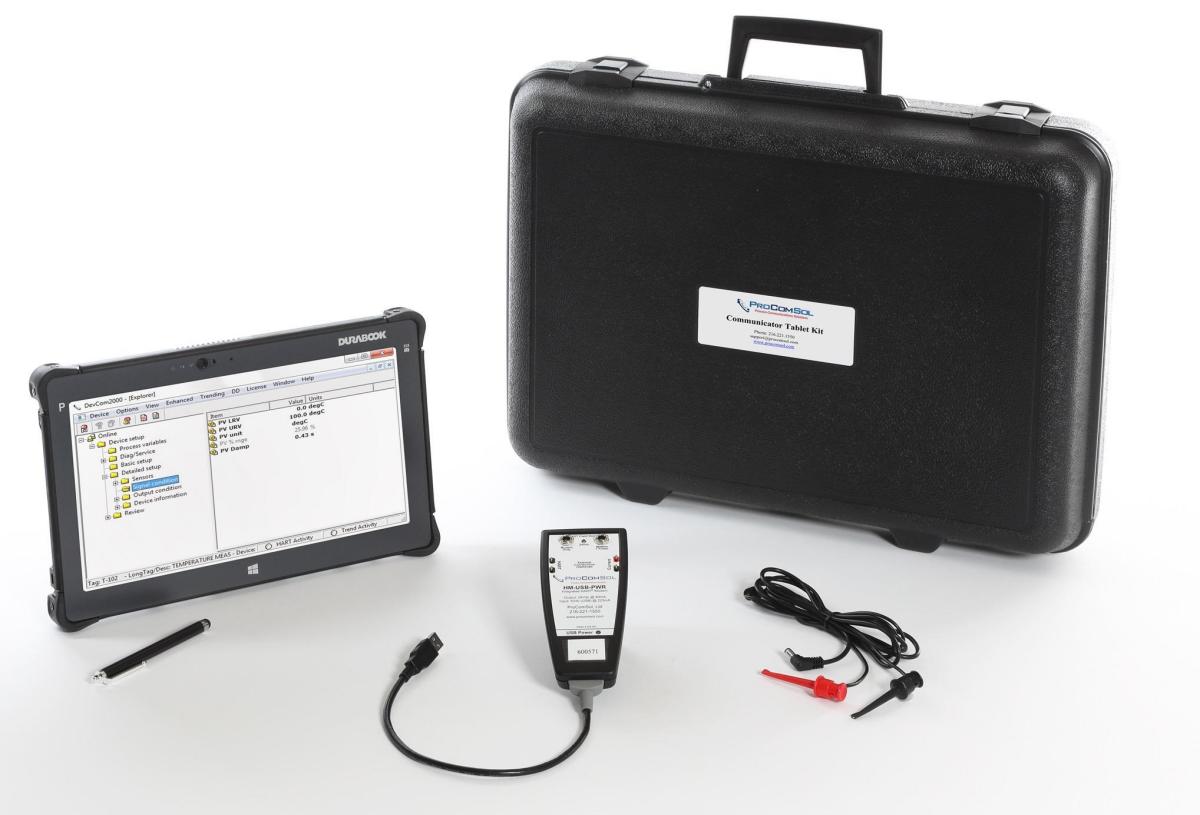

Windows Rugged Tablet HART Communicator Kit, USB Power

Combines all components needed for Rugged cost-effective HART Hand-Held Communicator including a USB modem with an integrated HART power supply. More info...

Kit

This is a kit.


$3900
(USD)

Quantity Desired:

Quantity must be a number between 1 & 99.

Add to cart

Image: DevCom2000, HART Communicator Software, Windows

Includes Software: DevCom2000, HART Communicator Software, Windows | Learn more...

Image: DevCom2000, HART Communicator Software, Windows

Includes Modem: HM-USB-PWR, HART Modem, USB with Integrated Power Supply | Learn more...

Image: Rugged Durabook R11 Tablet

Includes Tablet: Rugged Durabook R11 Tablet | Learn more...

1-Year Warranty
1-Year Warranty
Protocol: HART
HART
Operating System: Windows
Windows
Interface: USB
USB
Power Supply Included
Power Supply Included
Includes Tablet
Includes Tablet
TAB-PC-R-PWR
Windows Rugged Tablet HART Communicator Kit, USB Power
Features and Benefits:

DevCom2000 HART Communicator software bundled with a USB Power HART Modem and a Rugged Durabook R11 Tablet.

  • Windows Rugged Tablet
  • Modem supplies power to the HART transmit
  • Complete HART communicator
  • For rugged applications
  • 1 Year warranty

Logo: HM-USB-PWR EC Logo: RoHS (lead free)

What's included:
  • DevCom2000 HART Communicator Software
  • HM-USB-PWR USB Power HART Modem
  • Rugged Durabook R11 Tablet
  • Complete Device Descriptor (DD) library
  • One year Update Subscription (SUB-1YR)
  • 250 Ohm Loop Resistor
  • Rugged hard plastic case with carrying handle
Software
DevCom2000, HART Communicator Software, Windows

Windows software used to perform complete HART device configurations using a Windows Tablet.

Features:

  • Comes with ALL the latest registered Device Descriptors (DD’s) from the FieldComm Group (FCG)
  • Complete access to all features of the device DD including Methods
  • Monitor PV, Multi-variables, and Device Status
  • View and edit device Variables
  • Windows Explorer menu layout
  • Device menu structure easy to navigate
  • Get to the information you want quickly
  • Communication and Event Logs
  • Save device configurations as text and PDF files for documenting the device
  • Write saved device configurations to devices (device clone)
  • Perform Calibration Checks
  • Save calibration and device configuration data to the cloud
  • Trend process variables as well as any other parameter associated with the device
  • Complies with the Enhanced DDL standard (IEC 61804-3)
  • Supports HART 5, 6, 7, WirelessHART devices, and HART-IP
  • Supports Windows 7 through 11
  • Supports 32 and 64 bit Windows
  • No tag limits!
  • 1 Year of free DD library and program updates
  • 1 Year warranty

Image: DevCom2000, HART Communicator Software, Windows
Modem
HM-USB-PWR, HART Modem, USB with Integrated Power Supply

Perform HART communications between a HART transmitter and a Windows device using USB.  Unit can also supply power to the HART transmitter for easy setup.

Features:

  • Combination HART Modem and Power Supply for HART transmitters
  • +24Vdc supply from USB connection or AC outlet
  • 1500 Vdc Opto Isolation between HART and USB circuits
  • Supports all USB versions
  • Integral standard USB type A connector
  • Heavy duty HART Mini-grabber connectors
  • Designed to meet HART Physical Layer Spec HCF_SPEC-54
  • Self powered, no external power supply or batteries needed
  • Built-in Loop Resistor
  • Supports Windows 7 through 11
  • Supports 32 and 64 bit Windows
  • 1 Year warranty

Image: HM-USB-PWR, HART Modem, USB with Integrated Power Supply
Tablet
Rugged Durabook R11 Tablet

Rugged Durabook R11 tablet with Bluetooth, Windows 11, WI-FI, 8GB RAM, 128GB Storage Memory, 11.6 inch Touch Screen.

Features:

Operating System Windows 11
Screen 11.6” FHD (1920 x 1080 pixels) Multi-Touch Screen
Communications Bluetooth 5.0, WLAN 802.11 a/b/g/n/ac
Bluetooth Modem Range 300 ft (100m)
Memory 8 GB RAM, 128 GB Storage
Camera 5 Megapixel rear, 2 Megapixel front
Battery 3950 mAh

Image: Rugged Durabook R11 Tablet
