Cost-Efficient and Advanced HART and FF Communicators

Advantages of a PC-Based HART Communicator


DevCom2000 HART Communicator


It’s now time to upgrade to a new HART communicator. Your old handheld HART communicator is obsolete and receives limited support. You shop around and find that it costs between $7,000 and $10,000 for a new handheld HART communicator. A Google search reveals a PC-based alternative. Will the PC alternative HART communicator perform as required? What should you look for?

The PC-based HART communicator has been around for many years, but until recently it has not been able to replace the handheld HART communicator. The main reason is that it could not communicate at the DD level with all the devices in the DD library. Recent developments have eliminated that problem and now is a good time to review the capabilities of a PC-based HART communicator.

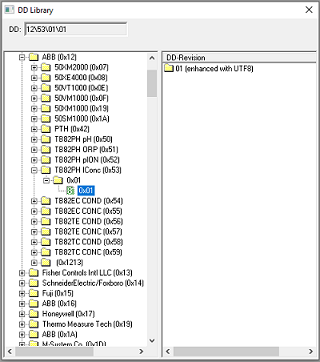

DevCom2000 DD Library List

DevCom2000 DD Library List

Device Descriptions (DD’s) and the SDC-625

The key criterion is that the program within the HART communicator must be "DD based." This means the software uses the HART device’s DD object file to present menus, variables, and methods. The device manufacturer spent a considerable amount of time developing the DD so that the full functionality of the device is available to the user.

The DD was tested extensively for release to the FieldComm Group DD Library. This DD is the only approved way to interface to a HART device. Some programs use files that are derived from the DD. However, this approach is not safe because the device manufacturer does not test the derived files. Only the compiled DD binary file is tested by the device manufacturer.

The FieldComm Group recognized the need for a standard PC-based interface into the DD. They applied their expertise into the standard and in 2004 released the SDC-625 Smart Device Communicator. The SDC-625 uses the DD binary files just like the handheld HART communicator. An SDC-625 developers group was created, where member companies had access to the source code and could improve the software.

All developer companies get access to the improved code, so the quality and functionality increases rapidly. This open source method of software development within PC-based HART communicators is quickly becoming a standard practice for software creation worldwide.

A new requirement by the FieldComm Group is that all new DD’s must pass a testing protocol using the SDC-625. This ensures all DD’s are bug free and behave as expected. So any PC-based communicator that is built using the SDC-625 is also guaranteed to work as the device manufacturer intends.

Ease of Updating Your HART Communicator

Once you have established that the candidate PC-based HART communicator is DD based, you can look deeper into other criteria. One is the DD Library itself. The DD Library is updated 4 times per year by the FieldComm Group.

You can also ask yourself questions about the DD library such as:

  • Does the software contain all devices released by the FieldComm Group?
  • Is it easy (and inexpensive) to update the library?

Some handheld HART communicators are extremely difficult and expensive to update. PC-based HART communicators can take advantage of the internet to maintain the library.

Ease of Use with PC-Based HART Communicators

A very important advantage of a PC-based HART communicator is that it has much more screen space to display information. The menu structure of the DD can be expanded or contracted as required. This enables you to jump directly to the information or function you are interested in.

No more digging through menus to perform a task, then backtracking to the main menu to then search down another path to do something else. In the PC communicator, everything is available at a glance. With a full keyboard available, data entry is also much improved.

The Windows interface is known to everyone worldwide. Training time is thus greatly reduced. Menus allow functions to be readily available – again, no need to dig through pages of menus to find what you want.

Single Function vs. Multi-Function in HART PC Communicator

Handheld HART communicators can only perform one function – HART communications. A PC-based solution offers the advantage of having all your needs met with one tool and having resources such as the following available:

  • Email
  • User manuals
  • Operating procedures
  • Reports
  • Contact database

In fact, HART communications on your PC allows integrating the HART information easily into your report database, contact management, and email. This results in higher productivity for the engineer or instrument technician, and also eliminates one extra piece of equipment.

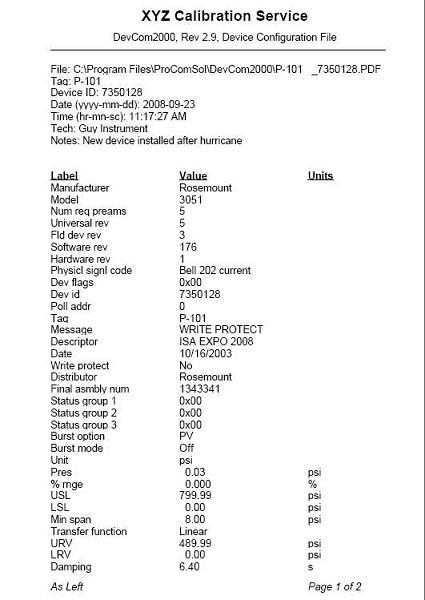

DevCom2000 Device Configuration PDF File

DevCom2000 Device Configuration PDF File

HART Communicator Saved Device Configurations

Documenting and managing device configurations are other important criteria. Some handheld HART communicators have memory limitations that limit the number of configurations you can save. Also, it may be difficult or impossible to transfer the configurations to the PC for archiving or viewing.

PC-based communicators have no practical memory limits. Configurations can be saved and viewed using standard programs. In a PC-based communicator, make sure the saved configurations can be viewed in a user friendly way. PDF files make great looking reports possible. Customizable reports on a PC-based HART communicator are also a nice touch.

Size and Mobility, Bluetooth as a Solution

In the past it was difficult to use a PC-based HART communicator in hard-to-reach places. Carrying a laptop up a ladder is dangerous. However, now there are Bluetooth-based HART modems that provide great convenience. Connect the Bluetooth HART modem in the hard-to-reach location, and then climb back down to safety and use your PC-based HART communicator safely from the ground.

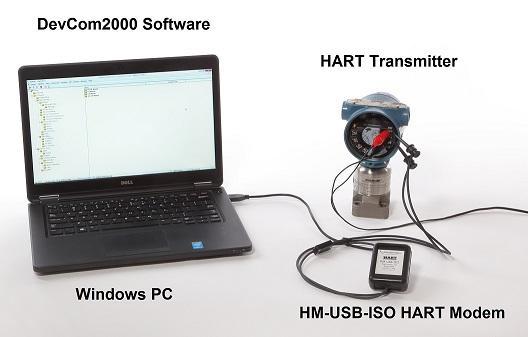

DevCom2000 Typical Use

DevCom2000 Typical Use

HART Communicator on a PC-Based Device

With the advent of the SDC-625, full featured PC-based HART communicators are now a reality. The SDC-625 uses the DD binary files supplied by the device manufacturer.

The DevCom2000 Smart Device Communicator software from ProComSol, Ltd is based on the SDC-625 software from the FieldComm Group. It was released in 2007 and has benefited from the open source development process and from user feedback. It is now feature rich, stable, and reliable. It offers full configuration saving and download.

Configuration reports are easy to read and distribute via PDF files that are customizable. It can be used with either HART USB modems or HART Bluetooth modems, and the DD Library is easy to update.

The DevCom2000 Smart Device Communicator is a PC-based HART communicator that offers many advantages over handheld communicators:

  • Ease of updating
  • Ease of use
  • Multi-function capability
  • Ability to document and manage device configurations
  • Significant cost savings

We have been continually upgrading and improving the DevCom2000 since 2007. For instance, DevCom apps on Android and iOS are now available with the same functionality as DevCom2000.

Want to learn more about our PC based HART communicator?  Reach out to our team today!
