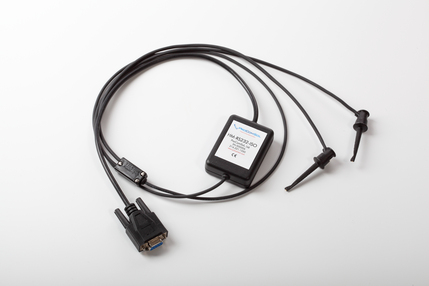

HM-RS232-ISO Isolated HART Modem

HM-RS232-ISO, RS232 HART Modem, Isolated

Easily connect your PC to your HART instruments with our RS232 HART modem. The HM-RS232-ISO is a self-powered isolated HART modem that helps streamline configuration and monitoring. As an electronically isolated HART modem, our RS232 HART modem also offers enhanced safety and performance features.

$450.00 (USD)

Data Sheet
User Manual

HM-RS232-ISO: An RS232 HART Modem Built with You in Mind

As with all our products, we construct HART communication solutions with the user in mind. From the rugged design and capabilities to the cost-effective price, every element of our RS232 Isolated HART modem is crafted with you in mind.

Benefits of theHM-RS232

The HM-RS232-ISO isolated HART modem offers many user benefits including compatibility with Windows systems, certifications, and a lead-free design (RoHS declared).

By purchasing our RS232 HART modem, you will also receive the following benefits:

The HM-RS232-ISO is:
- FieldComm Group Registered, Registration Number L2-06-1000-305
- CE Certified, CE Declaration
- RoHS (lead free), RoHS Declaration
No need for external power supply or batteries
Cost-effective price on a high-quality isolated HART modem
A 1-year warranty
The HM-RS232-ISO is guaranteed to work with Windows 7 through 11
It is also guaranteed to work with 32- and 64-bit Windows computers

Features of Our RS232 HART Modem

In addition to being an electronically isolated HART modem, which adds to the safety and performance of the device, our HM-RS232-ISO also offers a number of other features from custom cable lengths to its rugged design.

Some other features of our RS232 HART modem include:

1500 Vdc Opto Isolation between HART and RS232 circuits
Integral standard RS232 Female connector
Integral heavy-duty HART Minigrabber connectors
Certified to meet HART Physical Layer Spec HCF_SPEC-54
48” (1.2m) cable length
No driver installation required
Compact size 3.0” x 2.0” x 0.8” (70mm x 51mm x 20mm)
Rugged ABS plastic enclosure
Custom cable lengths available
Banana plug option available (HM-RS232-ISO-BP)
HART Modem Test Program included

For questions regarding the HM-RS232-ISO isolated HART modem, please reach out online or by phone: 877.221.1551 (toll free).
